Applications

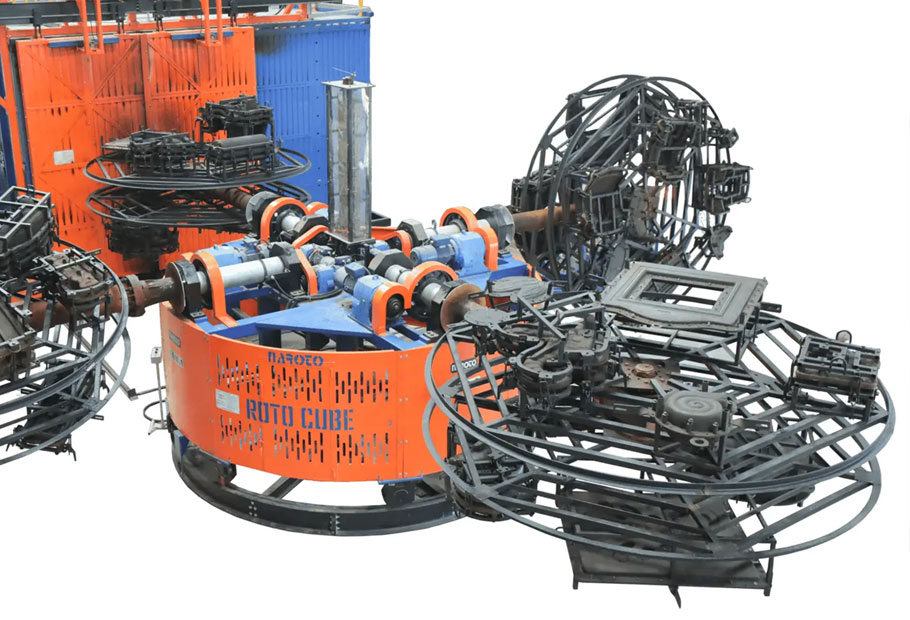

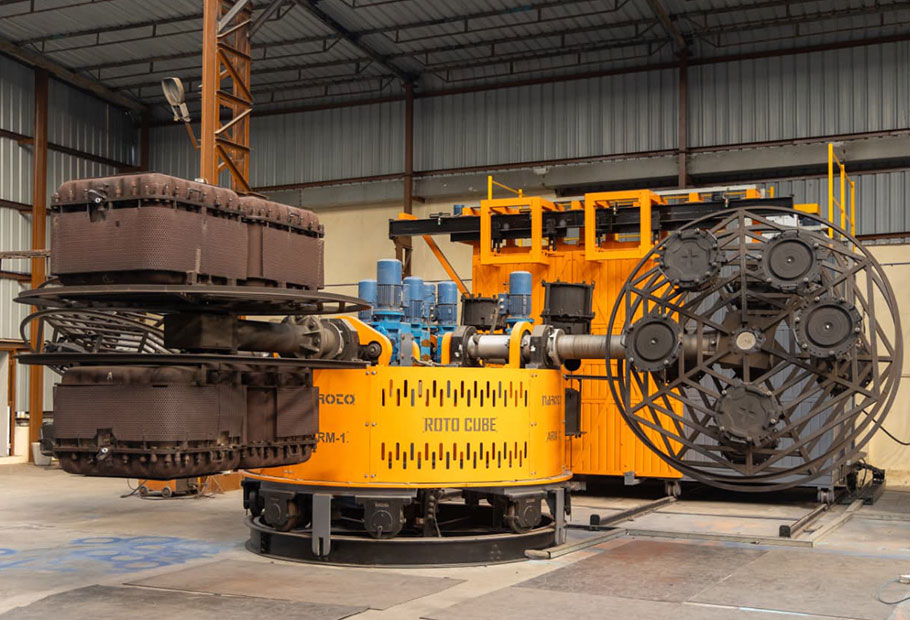

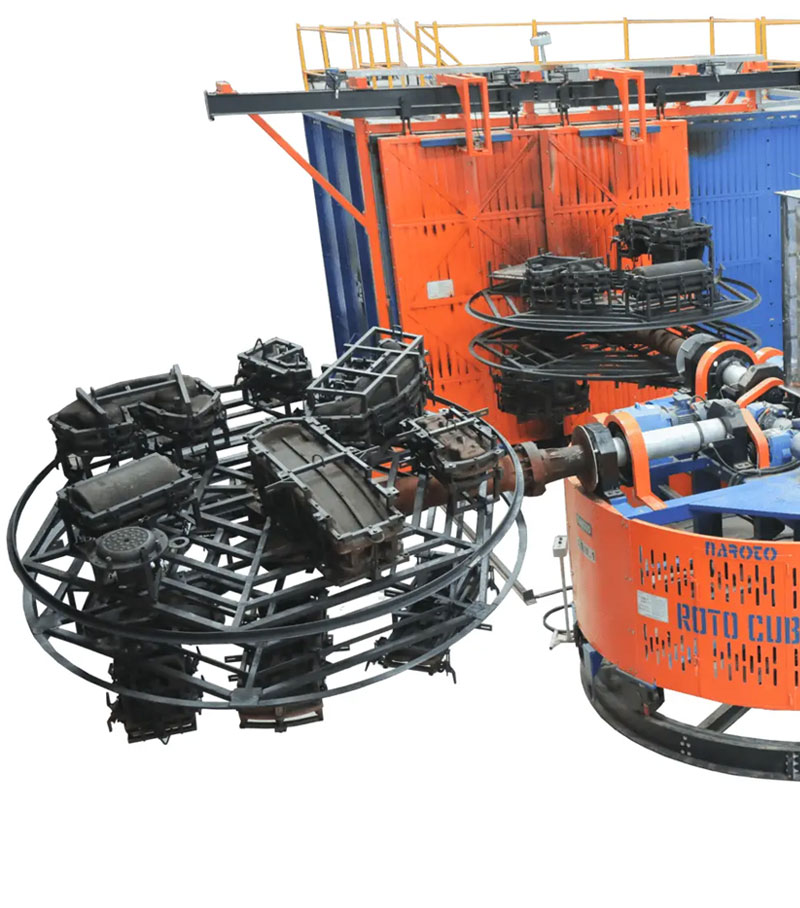

Looking to the high demand of exclusively complex shaped products other than conventional water tanks,Naroto is pleased to introduce the ROTOCUBE model Rotational Moulding Machine having 3 / 4 fixed / Independent Arms
- Independent Arms
- Conventional Water Tanks
- Shaped Products
NAROTO Independent Motion Independent Arm Machine is engineered for flexible rotomoulding production, allowing individual arms to operate independently for products with different processing times, while supporting efficient heating and controlled mould handling.
Designed for Flexible Production
NAROTO’s Independent Motion Independent Arm Machine is built for applications where different products require different processing times. Each arm can be independently moved, allowing manufacturers to manage varied production cycles within the same machine.
Its 3/4 independent arm and 4/5 station configuration provides flexibility for producing different product categories without interrupting the overall production process. The system can also allow an individual arm to be skipped when required, providing additional flexibility during precooling or waiting stages.
Engineered for Complex Products. Built for Consistent Results.
| Model | Floor Space (Mtrs) | Straight Arm Swing (mm)* | Offset Arm Swing (mm)* | ||||
|---|---|---|---|---|---|---|---|
| L | B | H | Major* | Minor | Major* | Minor | |
| Naroto - MOB - 2500 | 15 | 9 | 5.0 | 2300 | 2000 | 2300 | 1800 |
| Naroto - MOB - 3200 | 17.2 | 12.8 | 5.7 | 3000 | 2800 | 3000 | 2100 |
| Naroto - MOB - 3400 | 18 | 13 | 5.8 | 3200 | 3000 | 3200 | 2300 |
| Naroto - MOB - 3600 | 18.7 | 13.5 | 6 | 3400 | 3200 | 3400 | 2400 |
