Super Hero Of The Rotomachines High Efficient Lowest Fuel Consumption Ever.

Application

"The principal applications of NAROTO four fixed arm machine in which the process time for each arm requires an equal amount of time for loading heating, cooling and unloading. According to Rotomoulding process Four arm Machine is most suitable.The machine processes without interruption for the same recipe product with minimum cycle time, fuel efficiency and high productivity."

Silent Features

Heating Time

Average Heating Time 3 To 3.5 Minutes/ 1mm Thickness of plastic Resin Material.

Average Fuel Consumption

70-100 Gms* (LPG)/Kg of Polymer.

Specialty of Arms

Special Grade Arms Material With All Metal Treatment To Make Sure They Rotates Round The Clock

Ability Of Arms

User Freindly Interchangeable Arms.

Oven Insulation

Special Grade Insulation Which Ensure No Heat Loss.

Machine Safety

Machine Controls Are Equipped with necessary inerlocks/Indicators And Safety Alarms.

Fuel

Environment friendly burners suitable for LPG/ CNG/ OIL/ Dual Fuel Burners.

Machine Operation

Microprocessor based machine control panel with digital display. Equipped With Fully Automatic Scada Plc System Having Digital Display.

Layer Charging Facility

user Freindly Lift For Multilayer/PE Foam Charging

Technical Specifications

Model

Floor Space (Mtrs)

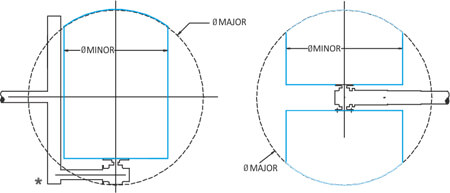

Straight Arm Swing (mm)*

Offset Arm Swing (mm)*



L

B

H

Major*

Minor

Major*

Minor

RPID 4S- 0200

14

10

6

3200

1600

2800

1450

RAPID 2X - 0200

16.5

12

7

4100

1600

-

-

SPEED-90 - 0500

18

13

6.5

3600

2800

3600

2300

SPEED-2X - 1000

23

16

7

4300

3600

4300

2700

SPEED-2X - 2000

25

17

8

5800

3600

5500

3000

Accessories shown on machine images are not part of standard scope of supply.

*Gross Rotating Area
